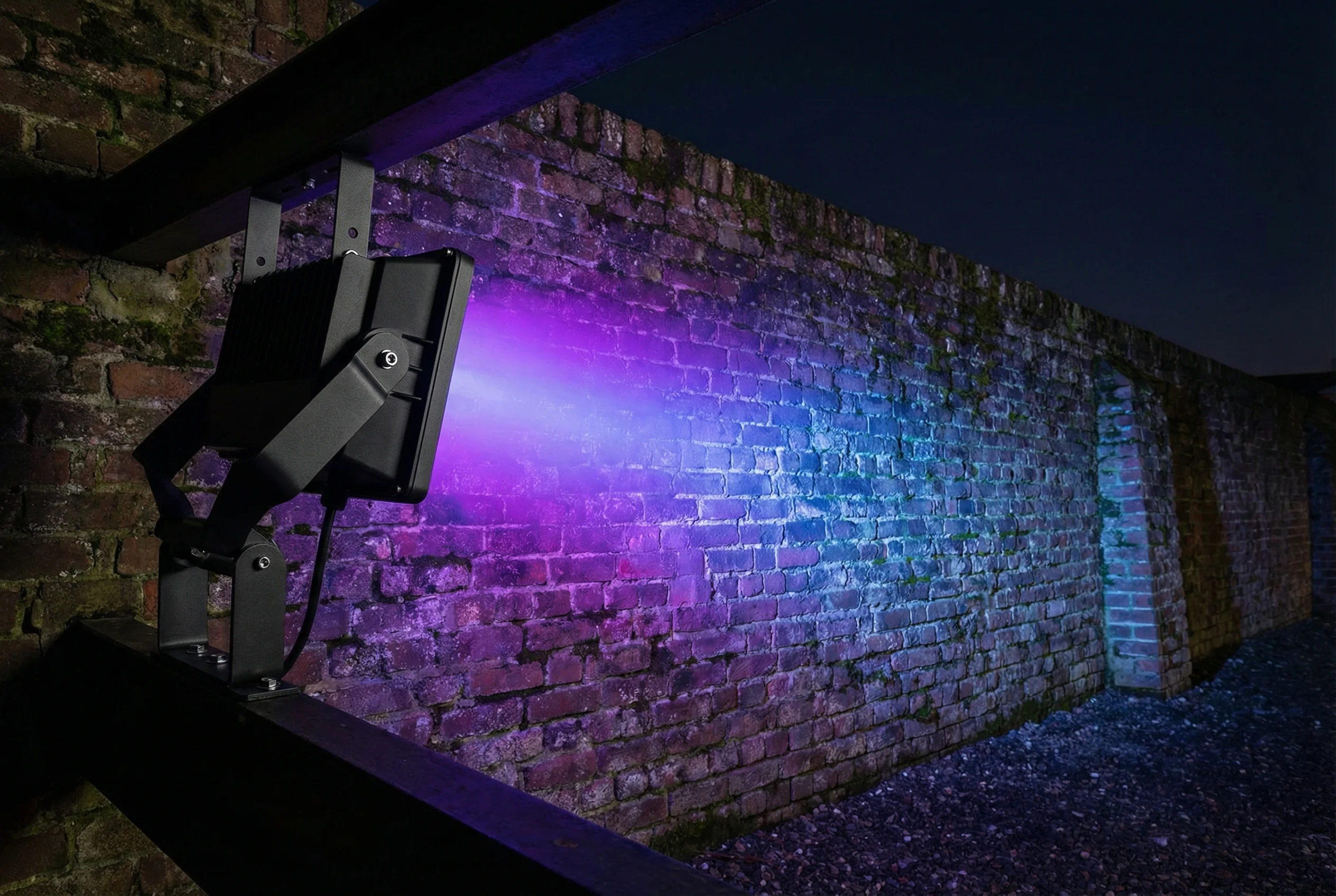

BRmesh LED flood light illuminating outdoor brick wall with RGB color wash

BRmesh flood lights have become a popular choice for outdoor smart lighting, and for good reason. They offer vibrant RGB+White colors, powerful illumination, and a unique hub-less design that works directly with your smartphone via Bluetooth mesh. Whether you're lighting up your backyard for security or creating stunning landscape effects, this guide covers everything you need to know.

What Makes BRmesh Flood Lights Special?

Unlike traditional smart lights that need a Wi-Fi connection or a central hub, BRmesh devices use Bluetooth mesh networking. This means:

  • No Internet Required: Your lights work even if your Wi-Fi goes down
  • No Account Needed: Privacy-friendly setup with just the app
  • Extended Range: Each light acts as a repeater, extending signal up to 100+ feet
  • Excellent Sync: Group dozens of lights to change color simultaneously

The trade-off? You can't control them when you're away from home (unless you add a smart hub), and they don't work with Alexa or Google Home natively. But for local control and reliability, they're hard to beat.

Quick Buyer's Guide: Choosing the Right Brightness

Not all BRmesh flood lights are created equal. Here's how to choose based on your needs:

Wattage Lumens Best For
30W ~3,000 LM Small patios, garden accents, tree uplighting
50W ~5,000 LM Medium yards, walkways, moderate security lighting
80-100W ~8,000-10,000 LM Large driveways, stage lighting, high-security areas
Pro Tip: Don't just look at wattage. Modern LED flood lights are incredibly efficient, so a 30W LED is roughly equivalent to a 250W halogen bulb. Always check the lumens rating for true brightness.

Understanding RGB+W vs RGB-Only

Most quality BRmesh flood lights use RGBW technology, which means they have dedicated white LED chips in addition to red, green, and blue. This is important because:

  • True White Light: RGBW produces crisp, natural white (usually 5700K daylight or 2700K warm white)
  • Better Color Rendering: Colors look more natural, not washed out
  • Higher Efficiency: White mode is more energy-efficient than mixing RGB

Cheaper RGB-only lights try to create white by mixing all three colors, resulting in a dim, bluish "white" with poor color rendering. Always verify you're getting RGB+W (also called RGBCW or RGB+CCT).

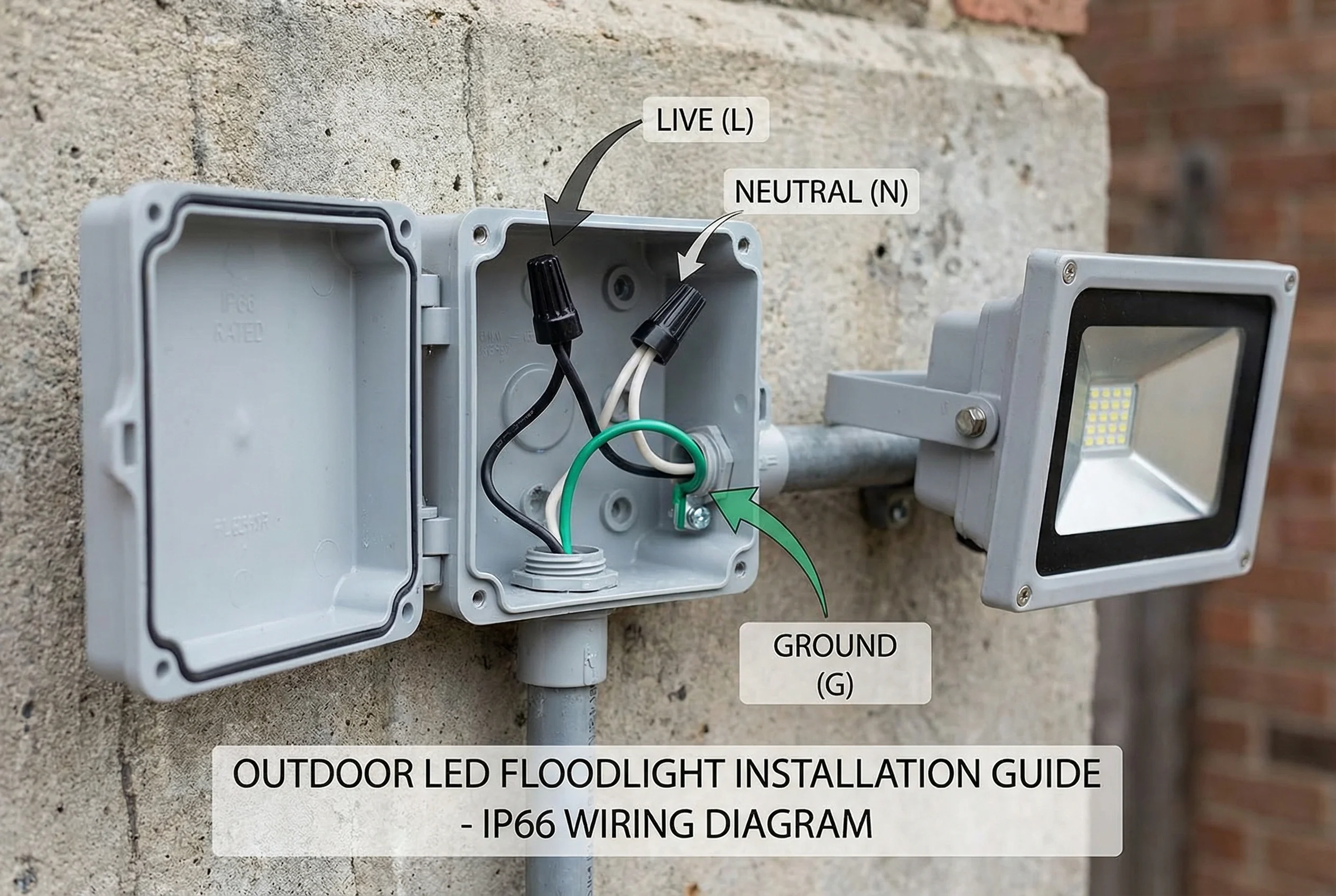

BRmesh flood light electrical wiring installation diagram

Installation Guide: Getting It Right

Electrical Installation Basics

Most BRmesh flood lights come with a standard 3-prong plug, but if you're hardwiring, here's what you need to know:

Region Live/Hot Neutral Ground
USA/Canada (NEC) Black White Green or Bare Copper
Europe/UK (IEC) Brown Blue Green/Yellow Stripe
Legacy/Import Red (verify!) Black (verify!) Yellow or Green
Safety Warning: BRmesh lights are NOT compatible with wall dimmer switches. They use digital PWM dimming controlled by the app. Connecting them to a TRIAC dimmer can cause flickering, buzzing, and permanent damage. Always use a standard on/off switch or constant power.

Mounting and Placement Tips

  • Heat Dissipation: Leave at least 2 inches of clearance around the fixture for airflow
  • Angle Adjustment: Point the light slightly downward to prevent water pooling on the lens
  • Mesh Range: Place lights within 25-30 feet of each other for reliable mesh networking
  • IP Rating: Look for IP66 (heavy rain) or IP68 (submersible) depending on your installation
BRmesh app smartphone pairing with LED flood lights

BRmesh App Setup: Pairing Your Lights

Step-by-Step Pairing Instructions

  1. Download the App: Search for "BRmesh" in the App Store or Google Play
  2. Enable Bluetooth: Make sure Bluetooth is on (Wi-Fi is not needed)
  3. Enable Location (Android Only): Android 6.0+ requires Location permission for Bluetooth scanning. This is an OS requirement, not tracking by the app
  4. Power On Lights: Lights should flash or breathe to indicate pairing mode
  5. Tap "+" in App: The app will scan and display nearby lights
  6. Select Your Light: Tap to add it to your network
Pro Tip: If you have multiple lights, add them one at a time to avoid confusion. Once paired, you can create groups to control them all simultaneously.

Creating Groups and Zones

The real power of BRmesh comes from grouping. You can create zones like "Front Yard," "Pool Area," or "Security Lights." When you adjust a group, all lights respond instantly (no "popcorn effect" where lights turn on one by one).

  • You can create up to 2,128 groups in a single network
  • Lights can belong to multiple groups
  • Groups respond to commands simultaneously via multicast addressing

Advanced Features: Timers, Schedules & Music Sync

Built-In Timer System

One of the best features is the ability to set schedules that run locally on the light itself. Once programmed, the schedule will execute even if your phone is off or away from home.

Important: BRmesh lights don't have battery-backed clocks. If power is cut (like during an outage), the schedule may reset. After power is restored, open the app to re-sync the current time.

Music Sync Mode (and Its Limitations)

The "Music Rhythm" mode is popular but often misunderstood:

  • No Built-In Microphone: The lights don't listen to music. Your phone does the listening and sends color commands via Bluetooth
  • Screen Must Stay On: iOS 14+ and Android 12+ kill background audio access. Keep the app in the foreground and screen on for this feature to work
  • Range Limit: Your phone must stay within Bluetooth range (30-40 feet) of the lights

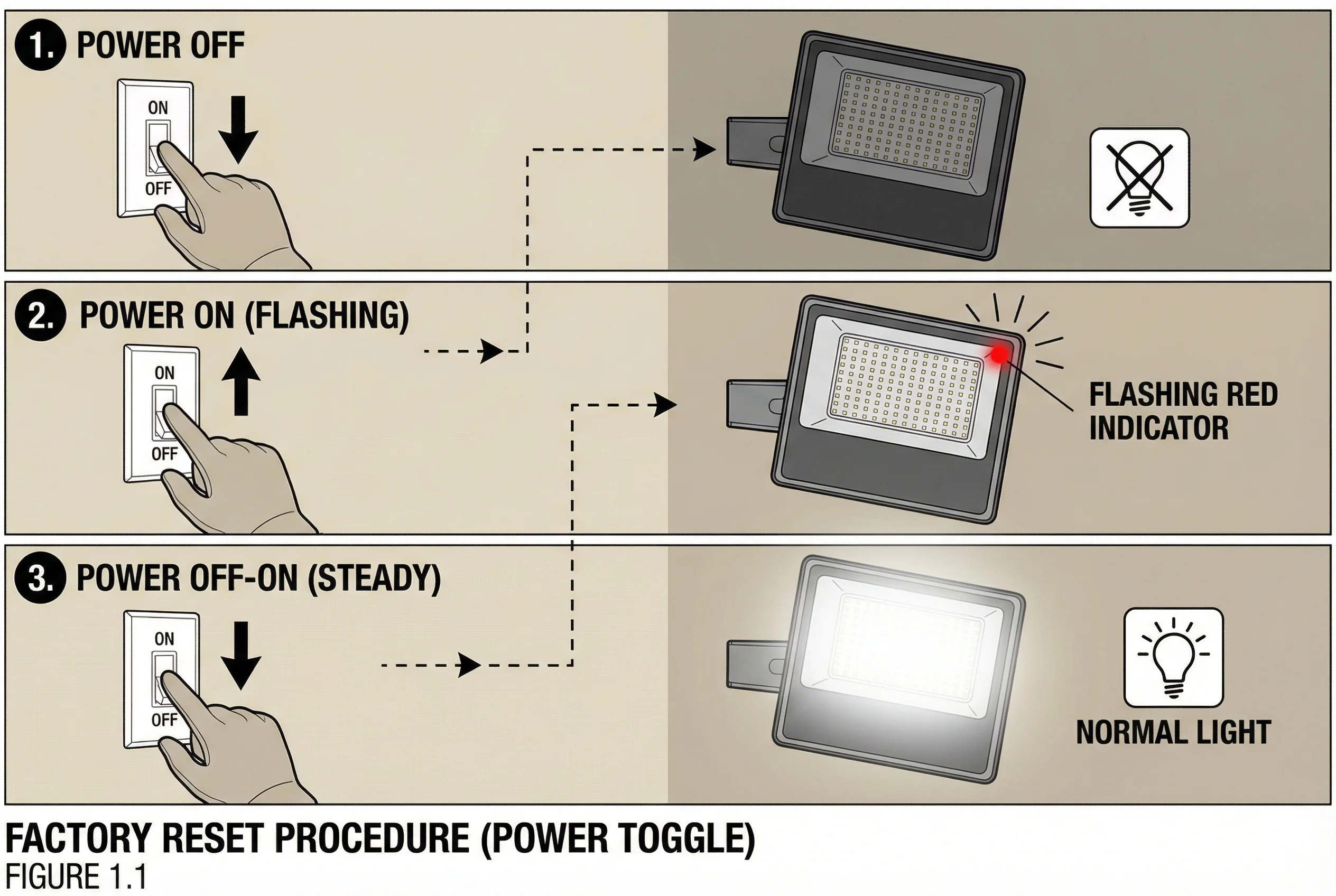

How to reset BRmesh flood light with power cycle method

Troubleshooting: When Things Go Wrong

Factory Reset Methods

If your light won't pair or becomes unresponsive, a factory reset usually fixes it. There are two common reset protocols:

Method 1: The "3+2" Sequence (BroadLink/Magic Connect)

  1. Turn light OFF for 10 seconds
  2. Turn ON for 1 second, OFF for 2 seconds (repeat 3 times)
  3. Turn ON for 15 seconds, OFF for 2 seconds (repeat 2 times)
  4. Turn ON - light should flash RED 3 times, then cycle colors

Method 2: The "5-Cycle" Sequence (Onforu/Olafus)

  1. Turn light OFF
  2. Switch ON-OFF rapidly 5 times (less than 2 seconds between cycles)
  3. Leave ON after the 5th cycle
  4. Light will flash or strobe to confirm reset

Common Issues and Solutions

Problem Cause Solution
"Device Offline" in app Bluetooth out of range or interference Move closer (within 5m). Ensure intermediate lights are powered on to extend mesh
Timer not working Clock drift after power loss Open app and connect to light to sync current time
Music sync stops working Background app restrictions Keep screen ON. Go to Settings > Apps > BRmesh > Battery > "Unrestricted"
Flickering or strobing Connected to wall dimmer or voltage drop Remove dimmer, use standard switch. Check voltage at fixture (should be 90-240V AC)
Only one color works LED driver channel failure Hardware failure - unit needs replacement

Smart Home Integration: Going Beyond the App

While BRmesh lights don't work with Alexa or Google Home out of the box, there are ways to integrate them:

Option 1: BroadLink Smart Hub

Purchase a BroadLink GW4C hub to bridge Bluetooth to Wi-Fi. This enables:

  • Voice control via Alexa and Google Home
  • Remote control when away from home
  • Cloud-based automation (requires vendor's cloud service)

Option 2: Home Assistant (Local Control)

For tech enthusiasts, you can use an ESP32 microcontroller running custom firmware to create a local MQTT bridge. This requires:

  • Extracting encryption keys from the BRmesh app (see community guides)
  • Setting up an ESP32 with FastCon protocol support
  • Configuring Home Assistant MQTT integration

This approach keeps everything local and doesn't depend on cloud services, but it's more technical to set up.

Technical Specifications at a Glance

Feature Specification
Network Topology Bluetooth 5.0 Mesh (BroadLink FastCon)
Maximum Nodes 100-240 devices (varies by firmware)
Range (Phone to Light) 30-40 feet (unobstructed)
Range (Light to Light) 25-30 feet (mesh hop)
Input Voltage 90-245V AC, 50/60Hz (universal)
Color Options 16 million RGB colors + Warm/Cool White
Dimming Method Digital PWM (not compatible with wall dimmers)
IP Rating IP65-IP68 (model dependent)
Lifespan 50,000+ hours (typical LED rating)

Final Thoughts: Are BRmesh Flood Lights Right for You?

BRmesh flood lights are an excellent choice if you:

  • Want reliable local control without depending on Wi-Fi or cloud services
  • Need to cover a large outdoor area with synchronized lighting effects
  • Prefer privacy-focused devices that don't require accounts or registrations
  • Value robust mesh networking with self-healing capabilities

They may not be the best fit if you:

  • Need remote control when away from home (without adding a hub)
  • Want native Alexa or Google Home integration
  • Prefer a polished, enterprise-grade smart home experience

For outdoor lighting where reliability and local control matter most, BRmesh flood lights offer exceptional value and performance. With the information in this guide, you're now equipped to install, configure, and troubleshoot your system like a pro.
